Live Link Component

PreviousEvaluate ComponentNextIntegrations

Last updated 4 years ago

Was this helpful?

Overview

The Live Link Component transfers data structures produced by Rhino Nature to the Grasshopper's environment and keeps them up to date.

Outputs

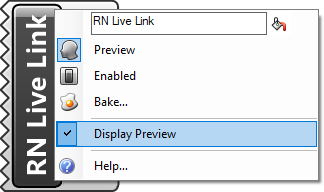

Menu Options

Display Preview - Enables or disables Rhino Nature's preview. Usually to prevent overlapping of previewed objects in the Rhino's viewport. This setting is shared across all instances of this component in the Grasshopper document.

Remarks

The component indicates its state with a label attached below it. A connected state means that it successfully linked with Rhino Nature and is receiving data. A disconnected state means that it encountered an issue during linking and isn't receiving data. Usually, because of the not loaded base plugin in Rhino's environment.

Ecosystem Data [ED] (Generic data) - List of Ecosystem Data objects which should be passed to the in order to retrieve desired internal structures.

Single Live Link Component provides a list of all existing which are set as Renderable. To achieve the best performance one component should be used per one Grasshopper document.

📖
